2. Face Follow
Face Follow (No-PTZ)
1. Experiment Objective
Use OpenCV Haar Cascade to detect faces, with body rotation tracking + distance following keeping the face centered in the frame and maintaining a constant distance.
2. Experiment Principle
1. Key Terms
| Term | Description |
|---|---|
| Visual Follow | Adds distance control (linear.x) on top of tracking, making the car rotate and move forward/backward simultaneously |
| Distance Follow | Estimates distance from the face box width, with PD control keeping the car at the desired distance |
| Haar Cascade | OpenCV frontal face cascade classifier for fast face region detection |
| PD Control | Angle PD (angular.z) + distance PD (linear.x) with independent gains |
| Deadband | Deadbands in both the horizontal and distance dimensions to avoid frequent actions from small deviations |
| QoS | best_effort (image input + cmd_vel downlink), depth=1 |
2. Technical Architecture
Shares the same node face_tracker_node, with enable_distance_follow:=true:
/camera/image_raw (BEST_EFFORT)→ face_tracker_node (enable_distance_follow:=true)├── Grayscale → Haar Cascade → largest face → center + width└── Body control (10 Hz): pixel error → PD angular velocity + face width error → PD linear velocity → /cmd_vel
3. Core Topics Quick Reference
Firmware Downlink
| Topic | Message Type | QoS | Field | Range | Direction |
|---|---|---|---|---|---|
/cmd_vel | geometry_msgs/Twist | best_effort + keep_last(1) | linear.x | -0.16~0.16 m/s | += forward (approach), −= backward (move away) |
angular.z | -1.00~1.00 rad/s | += left turn, −= right turn |
3. Experiment Steps
1. Hardware Preparation
| Hardware | Requirement |
|---|---|
| PTZ Version | ❌ |
| No-PTZ Version | ✅ |
| Required Peripherals | ESP32 camera (mounted on bracket) |

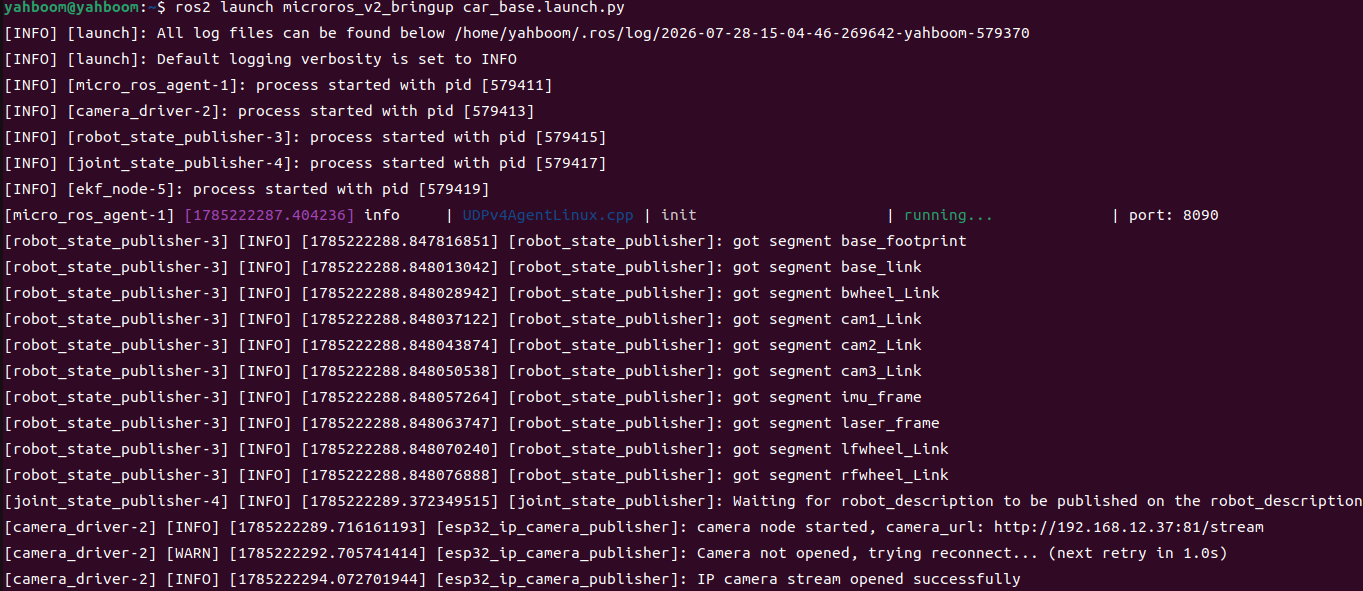

2. Start Agent + Camera + Joint Model (Terminal 1)
xxxxxxxxxxros2 launch microros_v2_bringup car_base.launch.py
3. Start Face Follow (Terminal 2)
xxxxxxxxxxros2 launch microros_v2_no_ptz_visual_control_pkg face_follow.launch.py
5. Operation Instructions
| Key | Function |
|---|---|
| Space | Toggle follow/standby |
| i / I | Switch to standby (IDLE) |
| q / ESC | Exit |
Distance Follow Behavior: Face approaches (width increases) → move backward; face moves away (width decreases) → move forward; width within tolerance (±12 px) → stay still.

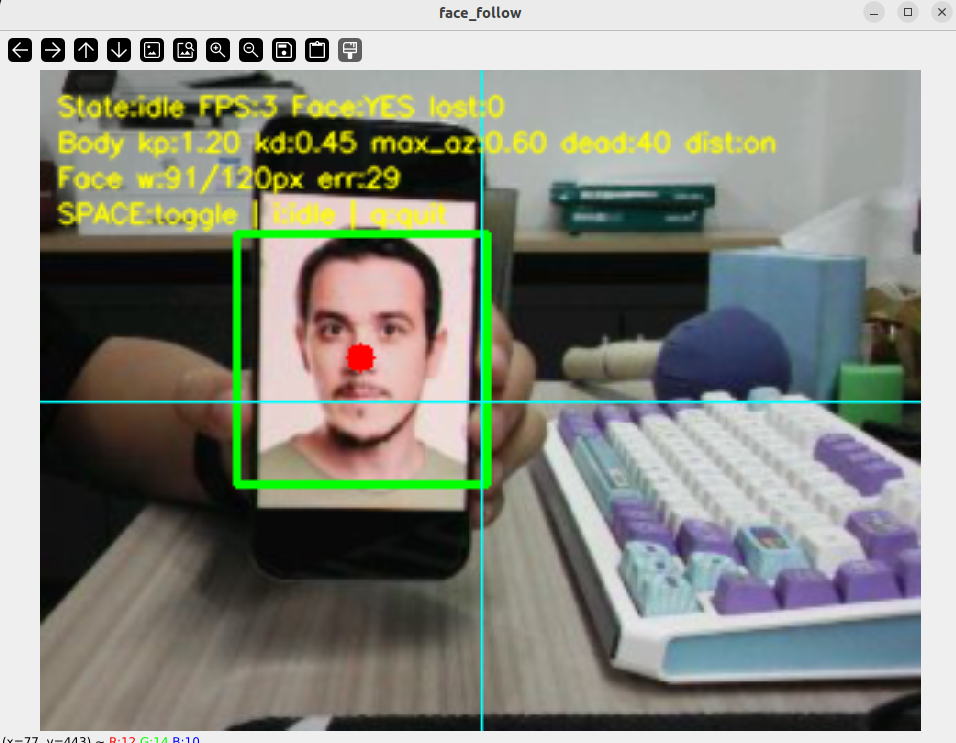

4. Experiment Result
- Face approaches → the car moves backward to keep the distance
- Face moves away → the car moves forward to follow
- Face width within the desired range (120 px) → the car stays still
- Face lost → the car automatically stops once the lost-target count exceeds the threshold
5. Code Explanation
Source code paths:
- Launch:
~/microros_ws/src/microros_v2_no_ptz_visual_control_pkg/launch/face_follow.launch.py- Node source:
~/microros_ws/src/microros_v2_no_ptz_visual_control_pkg/microros_v2_no_ptz_visual_control_pkg/face_tracker_node.py
1. Core Node Explanation
face_follow.launch.py launches face_tracker_node, which adds one more dimension of PD control over the tracking mode — distance PD. The node uses Haar Cascade to detect face regions and selects the face with the largest area as the target. Distance following is based on the face box width (rather than radius): width > desired → too close → move backward; width < desired → too far → move forward.
2. Key Parameters
Parameter definition files:
- Launch:
~/microros_ws/src/microros_v2_no_ptz_visual_control_pkg/launch/face_follow.launch.py- Node:
~/microros_ws/src/microros_v2_no_ptz_visual_control_pkg/microros_v2_no_ptz_visual_control_pkg/face_tracker_node.py
| Parameter | Type | Default | Description |
|---|---|---|---|
face_min_width / face_min_height | int | 80 px | Minimum face size |
deadband_x_pixel | float | 20.0 px | Horizontal deadband |
angular_kp / angular_kd | float | 1.2 / 0.65 | Angle PD gains |
max_angular_z | float | 1.0 rad/s | Maximum turning speed |
enable_distance_follow | bool | true | Enable distance following |
target_face_width | float | 120.0 px | Desired face width |
distance_tolerance_fw | float | 12.0 px | Distance tolerance deadband |
distance_kp / distance_kd | float | 0.012 / 0.003 | Distance PD gains |
max_linear_x | float | 0.16 m/s | Maximum forward/backward speed |
3. Node Description
| Node | Package | Description |
|---|---|---|
face_tracker_node | microros_v2_no_ptz_visual_control_pkg | Face tracking + following, Haar Cascade + dual PD |
6. Common Issues
| Issue | Cause | Solution |
|---|---|---|
| Profile faces not tracked | Haar Cascade only detects frontal faces | Keep the face facing the camera |
| Distance following oscillates between near and far | Unreasonable PD parameters | Adjust distance_kp / target_face_width |
| Frequent switching with multiple faces | Largest-face strategy | Make sure only one face is in the frame |
